AS 1000 Ovis EVO RC

Einsätze

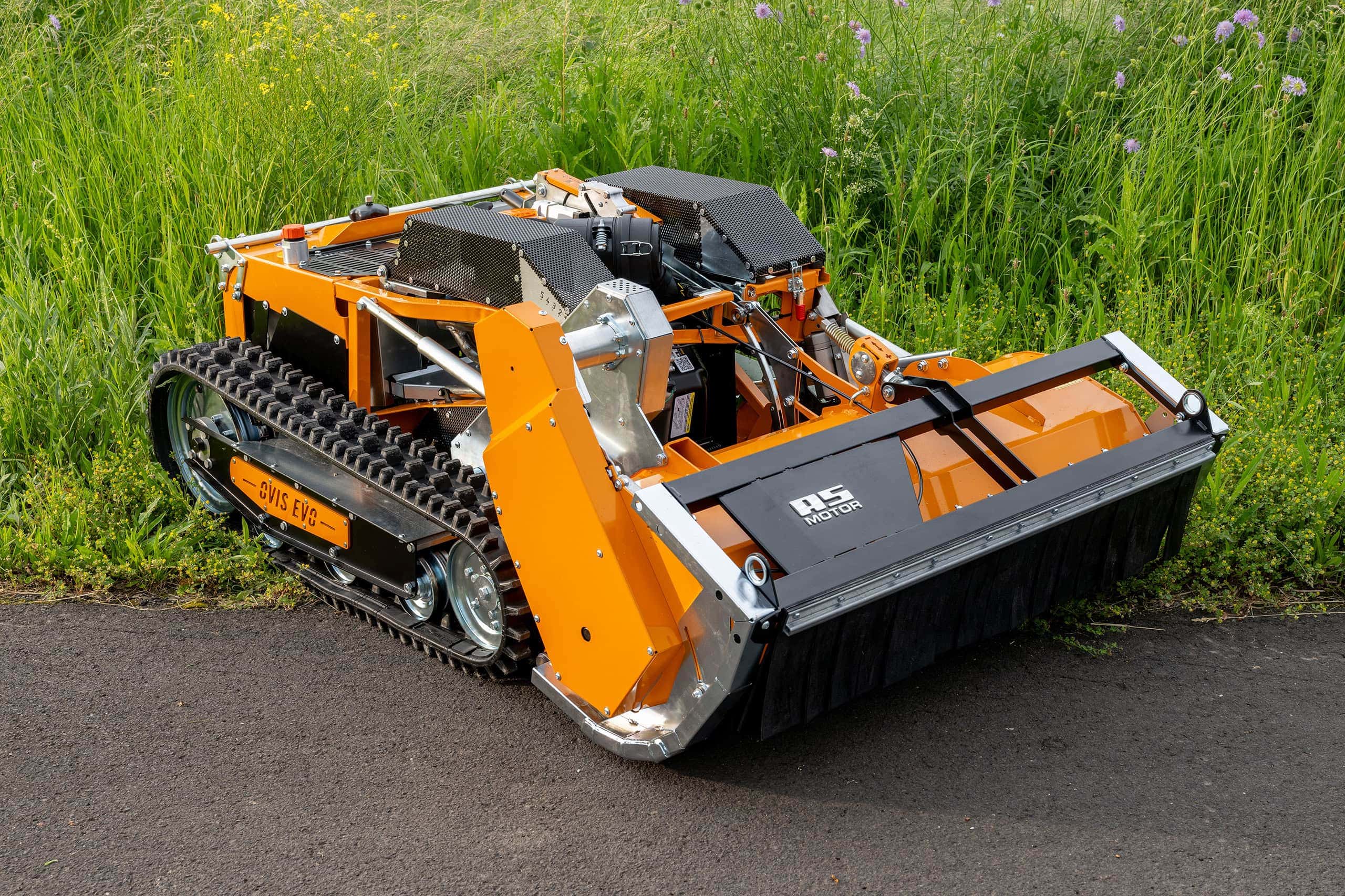

The next step in user comfort: the new AS 1000 Ovis EVO RC

The new AS 1000 Ovis EVO RC differs from the basic model in that it has a remote-controlled, electric cutting height adjustment with display, a remote-controlled, electromechanical blade clutch and a quick-release function for the hydrostats and brake.

Customers ask: ‘Why not now?’

The primary objective in the development of the AS 1000 Ovis RC was technical simplicity right from the start. Too many electrical components in a machine, such as electric throttle, electric choke, oil level sensors, EFI injection and CAN bus systems, create complexity that should be consistently avoided. After two years of practical experience, we can now add further essential RC functions. However, we will continue to do without electrical gimmicks for AS engines.

To view this video, please accept cookies from external media
Youtube Video Thumbnail

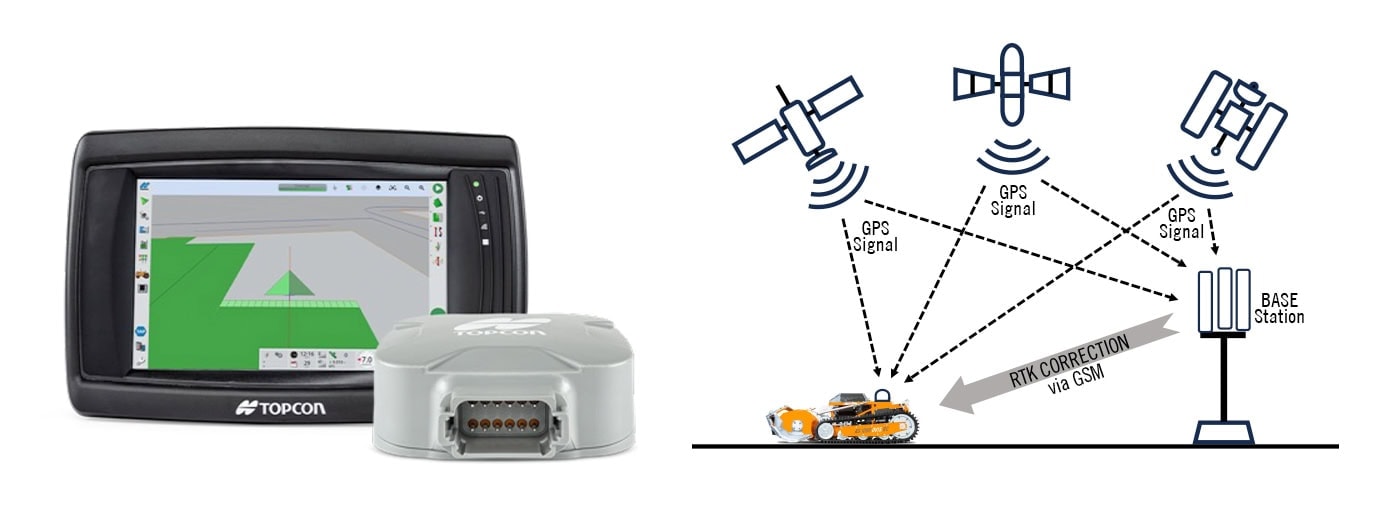

Simply stay on track. The X-ACT TRACK steering assistant takes over.

Steering assistants and lane guidance systems have become established in agriculture and in almost every modern car. Once users have discovered automatic steering systems for themselves, nobody wants to do without them. Precision and ease of work are greater than expected.

Product advantages

Versatile mower adjustment

One mowing deck - countless possibilities: optimum guidance via roller with anti-scalping function, adjustable sliding frame or supported insert for perfect adaptation to different terrain conditions.

Mowing close to the edge

The 100 cm wide flail mower and the slightly narrower caterpillar track enable comfortable mowing close to the edge and within a few centimetres of obstacles.

Power transmission without power loss

The enormous power of the Vanguard Professional 2-cylinder engine is transmitted directly to the cutterhead via a belt drive without any loss of power. The torque is divided between the two robust belts.

Highest mowing performance

The AS 1000 Ovis RC has the proven advantages of the tried-and-tested flail mower: maximum mowing speed, excellent cutting pattern and even grass placement.

Compact design

The low operating weight (only 419 kg) and compact dimensions (184 cm / 115 cm / 69 cm) allow mowing under low obstacles and on steep slopes.

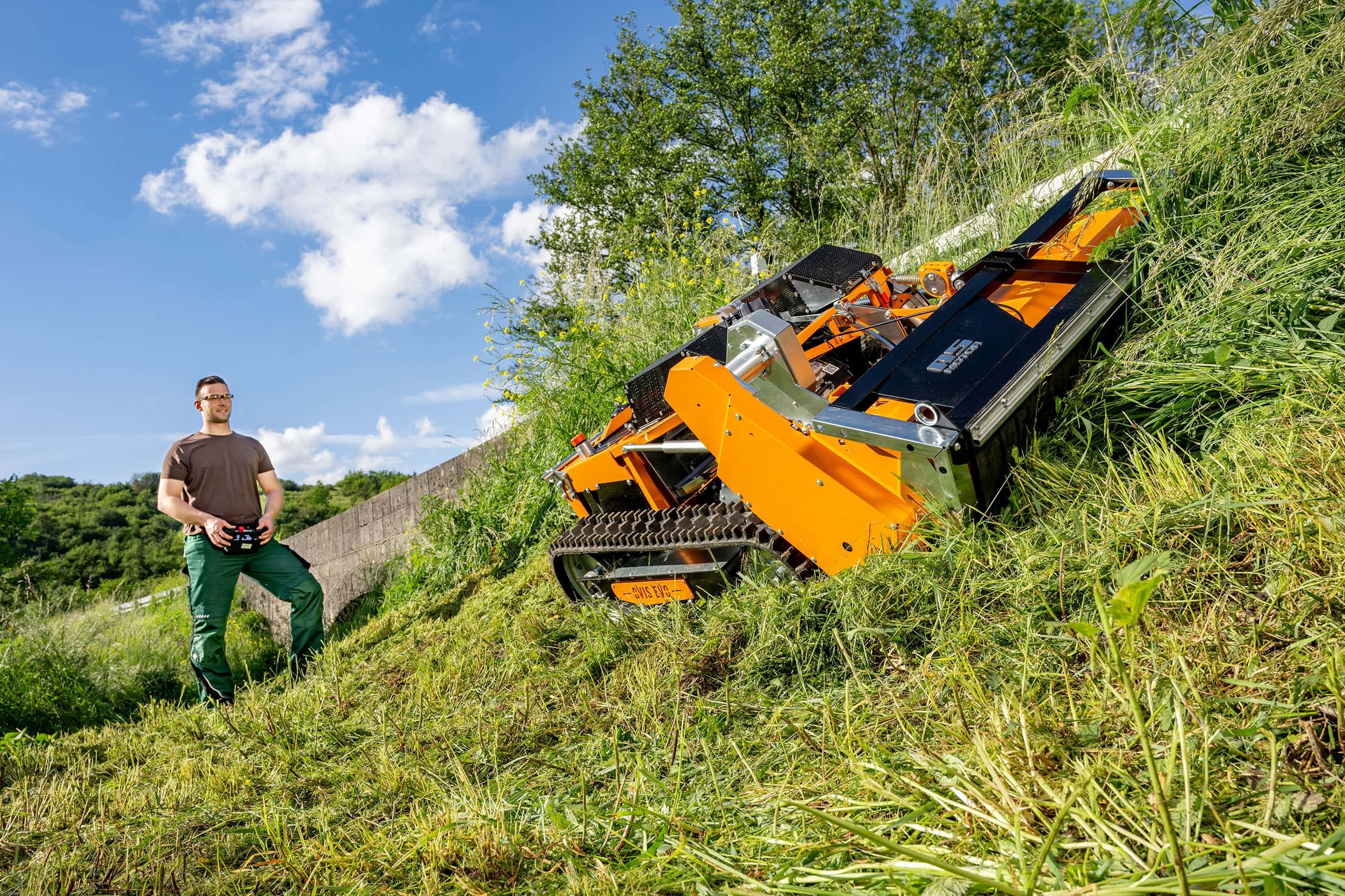

Extreme slope capability

The low-slung Vanguard Professional engine and the lowest overall height of just 69 cm - the prerequisites for the perfect centre of gravity and extreme slope capability.

Intuitive operation

Clear operating elements and accurate controls are the basis for precise manoeuvring of the machine. Robust hydraulic motors with their enormous torque ensure a precise and powerful drive.

Simple maintenance

The flail mower only needs to be serviced every 400 operating hours (first service after 50 hours). Excellent accessibility for daily cleaning and service work. Easy maintenance position for the flail mower.

Produktdetails

product-image

Remote-controlled cutting height adjustment

The cutting height of the AS 1000 Ovis EVO RC can be adjusted in the range of 40-110 mm by remote control.

product-image

Electric actuators

Two electric actuators move the cutting deck to the desired cutting height. The mowing deck is still mounted on a pivoting bearing and can move upwards.

product-image

Mechanical cutting height adjustment

Simple and robust. The set cutting height can be read off in five stages via a scale on the device. Transport position is reached via hand spindle.

product-image

Bypass for brakes and hydrostats

The hydrostats can be released and the brake opened via two easy-to-reach slides. This makes freeing and towing the machine considerably easier.

product-image

Remote-controlled blade clutch

An electric actuator switches the blade clutch. The advantage is that the very robust, mechanical blade clutch of the standard Ovis is retained.

product-image

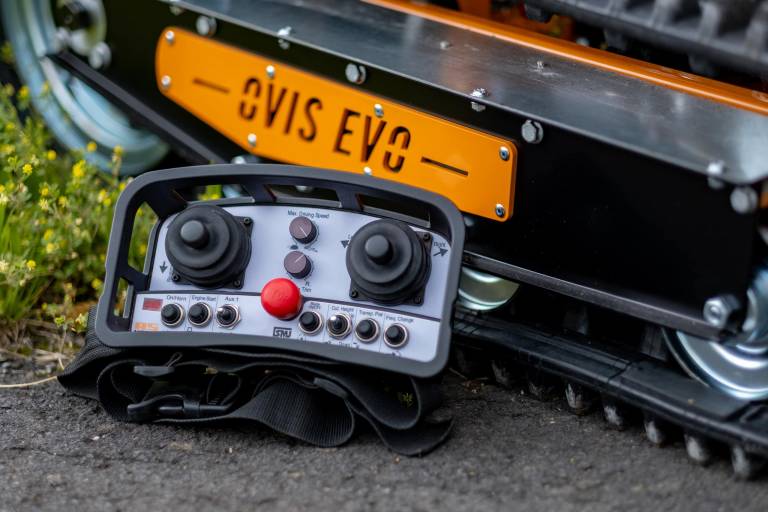

Intuitive control with simple remote control

The remote control only differs from the standard Ovis in that it has three additional buttons/toggle switches. Controlling the machine is as simple as ever.

product-image

Quick release chain

The quick-release tensioners of the drive chains can be tightened and loosened using the extension supplied as standard and an additional ratchet. This is done from the rear of the machine. The chain tensioners are easily accessible. The spring must be pre-tensioned to a length of approx. 12.5 cm.

product-image

Cooling air shaft

The hinged perforated plate cover acts as a pre-filter for the engine cooling air. It can be opened in seconds to clean the intake shaft. This is particularly necessary in dry and dusty working conditions.

product-image

Simple wiring harness

The Ovis was designed from the outset with electrical simplicity in mind. Its wiring harness has been reduced to a minimum, enabling any specialist dealer to carry out troubleshooting and repairs quickly and easily. Complex electronic systems have been expressly omitted.

product-image

Hydro wheel motors

The two hydrostats of the Ovis are designed for professional use. With a maintenance interval of 400 hours (first oil change after 50 hours), they significantly reduce maintenance costs. The maximum torque of the hydro wheel motors is 474 Newton metres.

Warranty

At AS-Motor, we understand that professional users, municipalities, and property owners need more than just high-performance mowing technology – they need confidence in their investment. That’s why we go beyond industry norms to offer a warranty system that sets new standards in the landscaping sector.

Technische Daten

Schnittbreite 100 cm
Maximale Grashöhe 150 cm
Motorhersteller Vanguard
Motorbezeichnung V-Twin 3864
4T Motor, 1-Zyl. / 2-Zyl. /
Hubraum 627 cm³
Maximalleistung 17,2/23,0 kW/PS
Nennleistung 15,5/21,1 kW/PS
Nenndrehzahl 3600 U/min.
Startvorrichtung, manuell / elektrisch /
Hydrostatischer Antrieb auf Raupenlaufwerk
Anzahl Gänge stufenlos
Rückwärtsgang
Max. Geschwindigkeit 5 km/h
Automatische Parkbremse
Messerkupplung, elektrisch / mechanisch /
Geschlossene Mähhaube
Schlegelpaare 56
Schlegelform, Y / Hammer /
Schnitthöhe 40 - 110 mm
Beidseitig verwendbare Schlegel
Tankinhalt 12 l
Abmaße LxBxH 184x115x69 cm
Gewicht 428 kg
Änderungen und Irrtümer vorbehalten. Aus Angaben und Abbildungen können keine Ansprüche abgeleitet werden.

Zubehör

product-image

Insect scare device

The AS-Motor Insect Scare Device is an innovative mowing attachment that protects pollinators and small wildlife. Scientifically tested to increase insect escape rates, it ensures sustainable mowing while maintaining efficiency. Designed for durability, adaptability, and easy integration with AS-Motor professional mowers.

» weiterlesen
product-image

Hammer flail kit

Complete kit. For AS 1040 YAK and AS 1000 Ovis.

product-image

Steering assistance system X-ACT Track

Automatic steering without much thinking. Better mowing results, higher area coverage and less fatigue thanks to automation.
