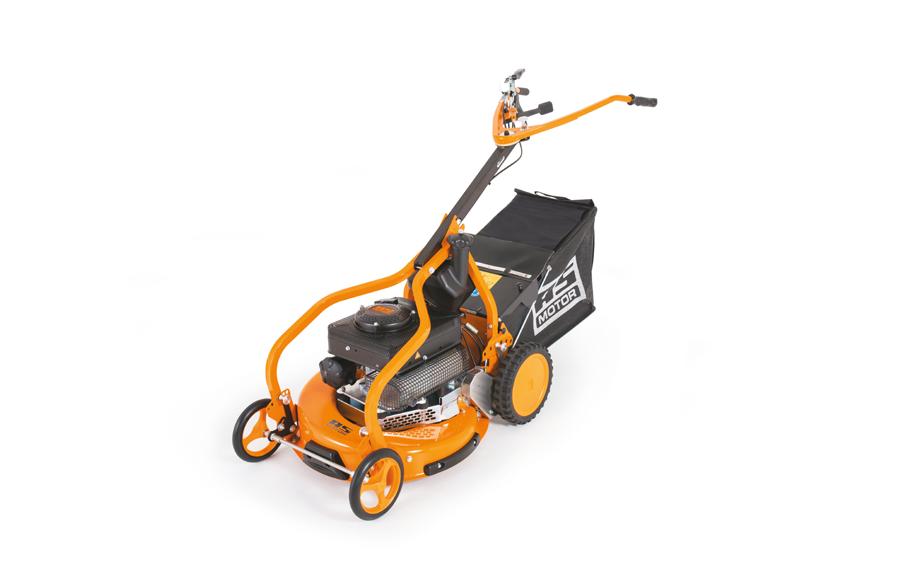

AS 531 2T ES MK B

Einsätze

2-stroke mower for maximum safety on slopes

The pro among lawn mowers. This 3-in-1 model has multiple advantages, starting with its ability to perform in demanding areas such as steep terrain and confined spaces. A mulch kit can be mounted and dismounted without tools, a feature that now comes as standard equipment. Thus, the AS 531 2T ES MK B functions as a mulching mower or as a lawn mower, with or without a collection bag— in other words, 3in1.
The AS 531 2T ES MK B is equipped with the world’s only 2-stroke engine that meets the requirements stipulated by the EU Emissions Directive 97/68/EC. The AS 2-stroke engine maintains engine lubrication regardless of position, enabling work on inclines of up to more than 40 degrees and more without the risk of engine damage. In addition, the AS 2-stroke engine is factory-equipped with an EasyStart function; the CDI digital ignition system cuts the rpms required to start in half. Even in wet grass, the 2-stroke engine’s high torque ensures all of it ends up in the collection bag, which has a capacity of 75 litres and a fill level indicator.
The AS 531 2T ES MK B is the only machine in its class with a safety brake and limited slip differential. As soon as the blade clutch lever is released, the parking brake activates and the mower comes to a standstill, regardless of how steep the slope. This function maximizes user safety.
The mower is easily operated with an open V-shape handlebar developed by AS-Motor: the left hand regulates speed from 3.0–4.5 km/h while the machine is in motion. The right hand steers and activates the blade clutch, the traction drive, and the parking brake. The blade clutch makes it possible to stop the blade without switching off and restarting the engine, for example, when emptying the collection bag. A pivoting handlebar allows the AS 531 2T ES MK B to be used comfortably along house walls and shrubbery or when mowing next to parked cars. The handlebar has rubber-bearing support and VibrationProtect vibration damping that reduces hand-arm vibration to a minimum. In addition, optimal weight distribution ensures ergonomic handling and fatigue-free work.

An exceptional lawnmower

The AS 531 2T ES MK B offers more to the professional operator. The machine’s unique features include:

  • position-independent 2-stroke engine, suitable for slopes up to 40 degrees
  • automatic differential lock
  • automatic parking brake
  • open V-handlebar with VibrationProtect

Other features:

  • mono bar for easy emptying of the collection basket
  • stable and weight-optimised steel frame
  • spring steel axle
  • individual wheel cutting-height adjustment
  • third crankshaft bearing and friction clutch close to the blade

Product advantages

Engine suitable for slopes

The world's only AS 2-stroke engine with EasyStart has position-independent lubrication, ensuring safe operation even on steep slopes.

Automatic parking brake (AS 531)

When the drive lever is released, the parking brake automatically engages and the machine stops, whether on a slope or level ground.

Special feature: automatic locking differential

Only when the drive wheel is spinning, the differential lock activates automatically. Otherwise, it is inactive and the machine is freely controllable.

Simple operating concept

Operation of parking brake, blade engagement, limited slip differential, drive function, speed adaptation, all with just three levers.

Variator

The variable speed adjustment allows optimal performance in all work conditions.

Weight distribution

Optimal weight distribution for ergonomic handling and fatigue-free work.

Mono bar with V-handlebar

Easy emptying of the collection basket through single-bar design. Ergonomic V-handlebar, laterally adjustable.

Produktdetails

product-image

3-i-1 funksjon

Fabrikkutstyrt med en enkel å montere mulchkit. Klipp med oppsamlingspose, bakutkast eller mulch.

product-image

Vibrasjonsdemping

VibrationProtect og gummiopphengte V-styre reduserer vibrasjoner til et minimum.

product-image

Stojabsorpsjon av forakselen

Stojabsorpsjon gjennom fjærstålaksel og gummi buffer.

product-image

Spesielle forhjul

Dobbelt kulelagerstøttet, jevntgående hjul presser ned svært lite gress.

Garanti

På AS-Motor forstår vi at profesjonelle brukere, kommuner og eiendomseiere trenger mer enn bare høyytelses slåmaskinteknologi – de trenger tillit til investeringen sin. Derfor går vi utover bransjestandarder for å tilby et garantisystem som setter nye standarder i landskapssektoren.

Zubehör

product-image

Driftstimeteller

Dokumentasjon av arbeidstimer.

product-image

Helningsmåler

Praktisk visning av skråningens helning.

product-image

AS 2-taktsolje "Titan 2T"

Premium ytelses 2-taktsolje, for et optimalt miljøvennlig blandingsforhold. Anbefalt for alle AS 2-taktsmotorer. Testet og godkjent for vårt anbefalte blandingsforhold på 1:100. Passer også for blandingsforhold 1:50. Erstatter vår tidligere TITAN 2T 100S olje, som ikke lenger er tilgjengelig.

Kundenstimmen

featured-image

AS 531 utfører fantastisk arbeid. Selv under våte forhold fylles den store oppsamlingsposen helt, og heller og åser er ikke noe problem for 2-taktsmotoren.

– Wolfgang Klaiber (AS-Motor produktspesialist, Tyskland)

featured-image

Jeg sparer en utrolig mengde tid ved å ikke måtte starte enheten på nytt hver gang jeg tømmer samleboksen eller krysser en hagevei… Jeg er fornøyd med klipperesultatet og oppsamlingen til AS 531, selv i vått gress… Service fra AS-Motor er like feilfri og rask som enheten selv, noe som betyr at plenklipperen min er operativ igjen så raskt som mulig.

– Michael Hiller (eier av Apollo Grünpflege i Oppenweiler, Tyskland)
