AS 585 EKM

4,1/5,5 kW/PS

Einsätze

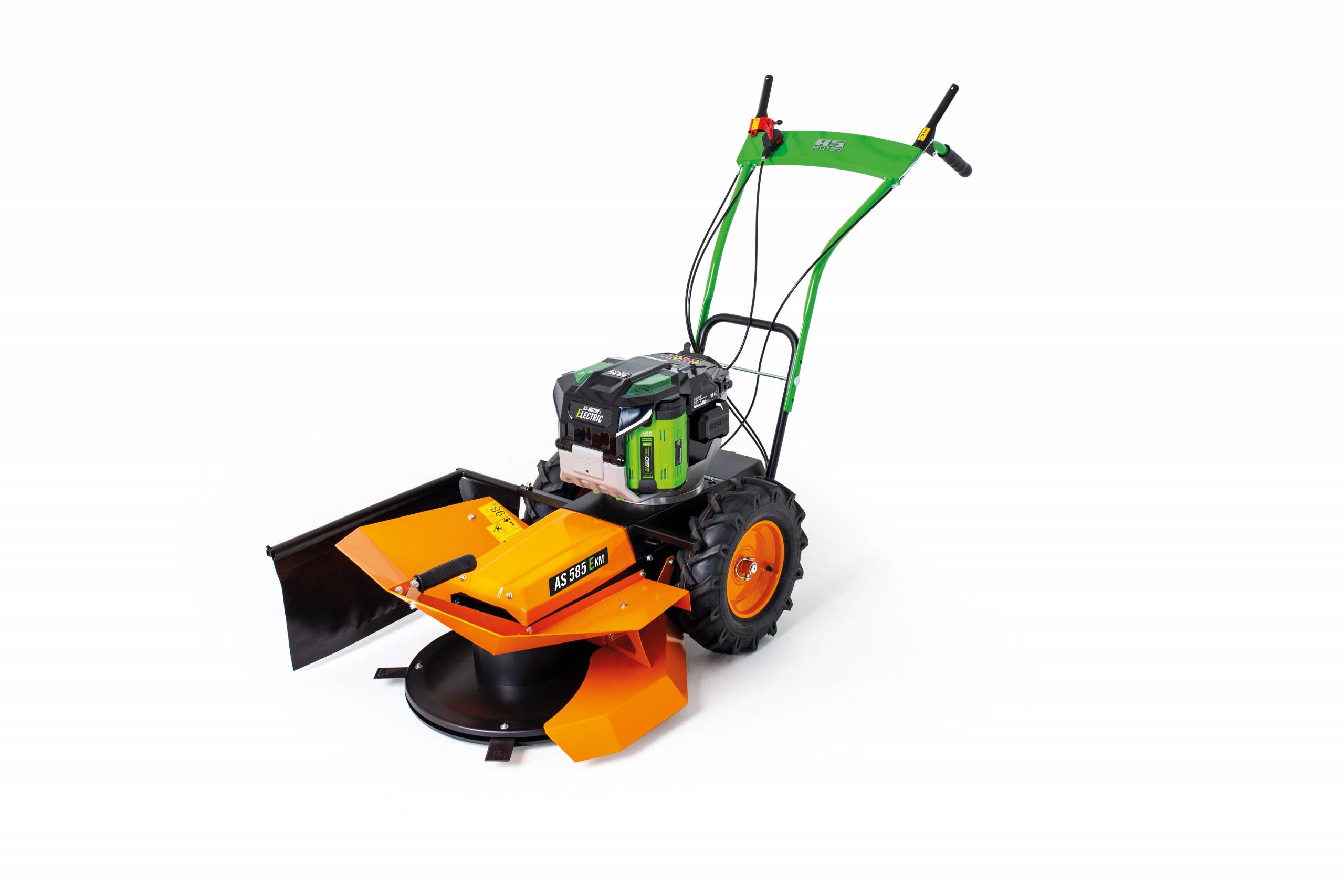

The battery-powered disc mower - emission-free and easy to handle

The AS 585 KM turns forage production for animals into an efficient and convenient task by embracing the principle of drum mowing: four flexible, swinging knife blades are fastened to the lower end of a drum and press outward when it rotates, cutting high grass up to 60 cm high a few centimeters above the ground. The long grass is then deposited in swaths for easy collection. A four-stroke OHV engine XP 200 with 196 ccm displacement and up to 4.8 hp combined with a 62 cm cutting width delivers work rates reaching 1,500 m² per hour.

Emission-free fodder and hay production with the new AS 585 E-KM rotary mower

The 56 volt AS-Motor Electric drive has the power of a conventional 200 cm³ 4-stroke combustion engine. Two professional portable 56 V batteries with 12 Ah each supply it with energy. That is an enormous 1,344 Wh of energy content. The drive unit can cope with power peaks without switching off. The intelligent “Power-Peak” system balances the connected batteries in parallel. The externaly mounted batteries in the patented ARC-shape are excellently protected against overheating. Important when mowing hay in the hot summer

The drive function is operated via a lever with a forward speed of 2.4 km/h. The rear wheels’ differential can be locked manually to increase propulsion in difficult terrain, while the guide bar can be adjusted to the operator’s height for comfortable work, or unhinged for simple transport. This means that the AS 585 E-KM rotary mower can also be transported in a slightly larger car.

An outstanding price-performance ratio and low-maintenance operation make the AS 585 E-KM a convenient and efficient tool for forage production.



Product advantages

Low-noise, low-emissions work

Thanks to battery power the device can be used in areas that are sensitive to noise and emissions.

Professional battery drive

56 Volt system with two times 12 Ah Li-Ion batteries. 3.460 watts maximum power and 1.344 watt-hours energy capacity.

Efficient forage production

The cut grass is deposited in swaths, enabling fast and easy collection.

Comfortable handling

Vibration-free operation makes the work much more pleasant when compared with bar mowers.

High profitability

Outstanding price-performance ratio and extremely low-maintenance.

Lightweight and compact

Easy handling during the operation and compact transport dimensions.

Produktdetails

product-image

AS-Motor elektrisk drift

Den mest kraftfulle elektriske driften på markedet. 56 volt, 3.460 watt maksimum effekt. To batteriplasser, aktiv kjøling og to arbeidshastigheter.

product-image

Slåenhet

Stabil slåplate med herdet reversibel dobbeltsidig kniv, skjerpet på begge sider.

product-image

Låsbar differensial

Bakre hjul med piggdekk og manuelt låsbar differensial for utmerket fremdrift.

product-image

Føringshåndtak

Føringshåndtaket kan justeres til individuell arbeidshøyde.

Garanti

På AS-Motor forstår vi at profesjonelle brukere, kommuner og eiendomseiere trenger mer enn bare høyytelses slåmaskinteknologi – de trenger tillit til investeringen sin. Derfor går vi utover bransjestandarder for å tilby et garantisystem som setter nye standarder i landskapssektoren.

Zubehör

product-image

Driftstimeteller

Dokumentasjon av arbeidstimer.

product-image

Helningsmåler

Praktisk visning av skråningens helning.

product-image

Væske dekk tetningsmiddel «Plattfuss-Stop»

Reduserer nedetiden på grunn av punktering (950ml)

» weiterlesen
product-image

Væske dekk tetningsmiddel “Plattfuss-Stop”

Reduserer nedetiden på grunn av punkteringer (20 liter); kan kun brukes sammen med pumpen

» weiterlesen
product-image

Pumpe for hjulforseglingsmiddel

For fylling av hjulforseglingsmiddelet "Plattfuss-Stop"; kun nødvendig i forbindelse med 20 l beholder

product-image

AS-Motor elektrisk batteri 56 Volt 10 Ah

Høyytelses Li-ion batteri 56 Volt 10 Ah, 560 Wh, ryggbatteri 28 Ah, 1,568 W.

product-image

AS-Motor elektrisk batteri 56 Volt 12 Ah

Høyytelses Li-ion batteri 56 Volt 12 Ah, 672 Wh.

product-image

Hurtiglader for AS-Motor elektrisk batteri 56 Volt 550 Watt 7,5/10/12 Ah

Ladetid 10 Ah 0-100 % på 70 min.

product-image

Hurtiglader for AS-Motor elektrisk batteri 56 Volt 700 Watt 10/12 Ah

Hurtiglader 700W for minimal ladetid. Ladetid 10 Ah 0-100% på 60 min.
