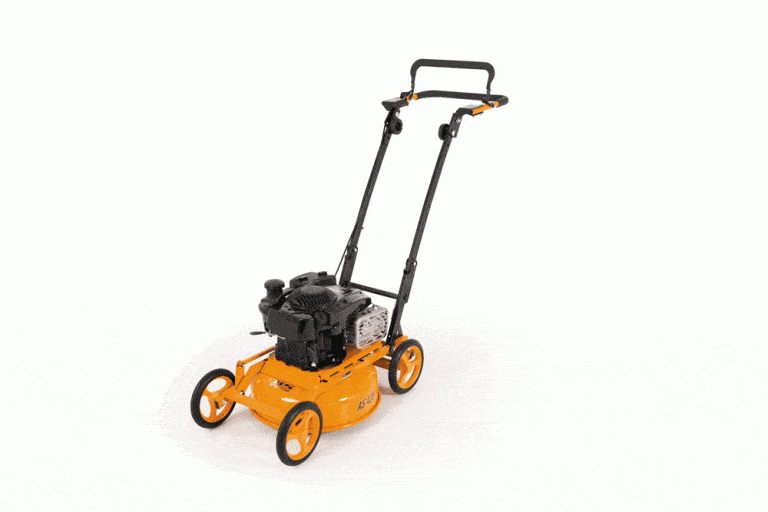

AS 420 ProClip 4T

Einsätze

Compact clear-out mower for mulching in confined spaces

Compact and agile. At 30 kg with a 42 cm cutting width, the AS 420 ProClip 4T mulching mower is perfectly suited for clean-out tasks in confined and angled spaces. The Briggs & Stratton engine not only delivers up to 5.7 hp, its asymmetric arrangement also ensures excellent handling thanks to a balanced distribution of weight.
A third crankshaft bearing and friction discs on the mulching blade protect the engine in the event of unseen obstacles. A galvanised steel mulching unit with reinforced edges guarantees a long service life, robustness and operator safety, even in difficult conditions.
Double ball-bearing front wheels and rear wheel drive provide easy handling. The front wheels’ special wedge shape minimizes impact on the grass, which quickly springs back up to be cut by the blade. This makes the cutting pattern extremely uniform. Cutting height can be adjusted centrally in a range from 40–80 mm via a spring-supported system, by foot or by hand.

Save time and money by mulching

A deep mulching unit delivers even finer cutting results. The mulching blade cleanly cuts grass up to 18 cm high and simultaneously generates an airflow that whirls the cuttings in the mulching unit. The mulching blade’s multiple cutting edges chop and mulch the grass several times. The cuttings then sink into the turf, forming a layer of mulch that both fertilises and protects the lawn from drying out. The AS 420 ProClip 4T saves 30% more time when compared with collection bag lawn mowers by avoiding the need to empty the collection bag or dispose of the cuttings.

Product advantages

Lightweight and agile

Outstanding handling due to 30 kg total weight and a rotated engine.

Up to 30% time saved

No collection basket, no cuttings disposal and fertilise the lawn simultaneously.

Blade shaft bearing arrangement protects the engine

Third crankshaft bearing and friction discs on the mulching blade ensure optimal engine protection.

Robust construction

Galvanised steel mulching unit with reinforced edge. Stable, height-adjustable guide bar.

Produktdetails

product-image

Stable mulching unit

Closed and deep mulching unit for uniform results.

product-image

Cutting height adjustment

Central spring-supported height adjustment.

product-image

Special wheels

Double ball-bearing supported, smooth-running wheels press down very little grass.

product-image

Perfect balance

A rotated engine achieves uniform weight distribution for better handling.

Warranty

At AS-Motor, we understand that professional users, municipalities, and property owners need more than just high-performance mowing technology – they need confidence in their investment. That’s why we go beyond industry norms to offer a warranty system that sets new standards in the landscaping sector.

Technische Daten

Schnittbreite 42 cm
Maximale Grashöhe "Mulchen" 18 cm
Motorhersteller B&S
Motorbezeichnung 850 PXi Readystart
1-Zyl.Motor, 4T / 2T /
Maximalleistung 4,2/5,7 kW/PS
Nennleistung 3,2/4,3 kW/PS
Nenndrehzahl 2800 U/min.
Drittes Kurbelwellenlager für Motorschutz
100% Mulchfunktion
Schnitthöhe 40 - 80 mm
Zentrale Schnitthöhenverstellung
Schnitthöhenverstellung, Anzahl der Stufen 5
Lenkerverstellung, Höhe
Tankinhalt 1,2 l
Abmaße LxBxH 127x46x100 cm
Gewicht 30 kg
Änderungen und Irrtümer vorbehalten. Aus Angaben und Abbildungen können keine Ansprüche abgeleitet werden.

Zubehör

product-image

Operating hour meter

Documentation of work hours.

product-image

Tilt meter

Convenient display of slope incline.
