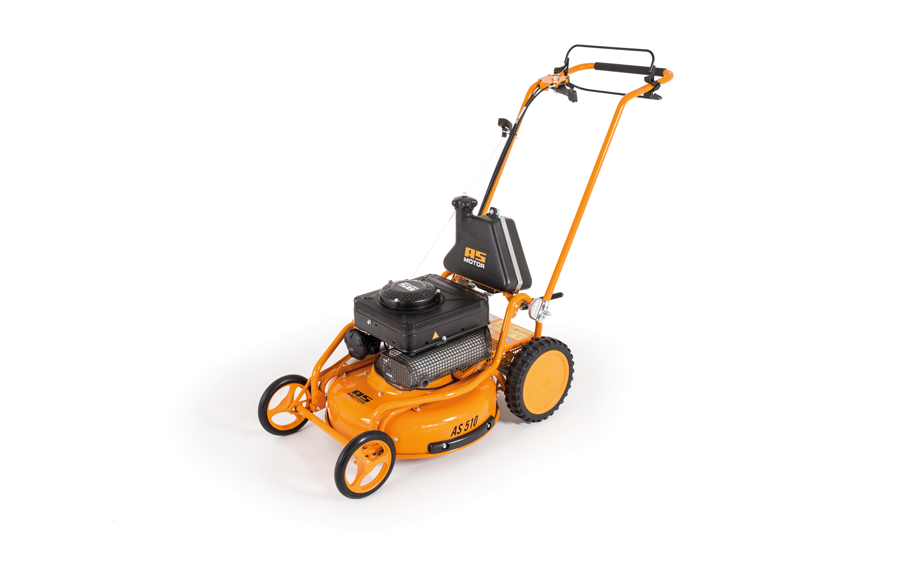

AS 510 ProClip 2T ES A

Einsätze

The professional mulching mower for slopes, with high torque and top performance

The AS 510 ProClip 2T A is equipped with the world’s only 2-stroke engine that meets the requirements stipulated by the EU Emissions Directive 97/68/EC. The AS 2-stroke engine maintains engine lubrication regardless of position, enabling work on inclines of 40 degrees and more without the risk of engine damage. In addition, the AS 2-stroke engine is factory-equipped with an EasyStart function; the CDI digital ignition system cuts the rpms required to start in half. The 2-stroke engine’s high torque ensures power even in tall grass.
A third crankshaft bearing and friction discs on the mulching blade protect the engine in the event of unseen obstacles while a variator allows the convenient adjustment of speed from 2.1–4.3 km/h while in motion. Double ball-bearing front wheels and rear wheel drive provide easy handling. The front wheels’ special wedge shape minimizes impact on the grass, which quickly springs back up to be cut by the blade. Cutting height can be adjusted to 6 levels from 40–90 mm via a spring-supported system.

Large, aggressive tread wheels ensure optimal traction and propulsion

The AS 510 ProClip 2T A saves 30% more time when compared with collection bag lawn mowers by avoiding the need to empty the collection bag as well as the time and cost-intensive process of disposing of the cuttings. The mulching blade cleanly cuts grass up to 18 cm high and simultaneously generates an airflow that whirls the cuttings in the mulching unit. The mulching blade’s three cutting edges chop and mulch the grass several times. The cuttings then sink into the turf, forming a layer of mulch that both fertilises and protects the lawn from drying out.

Product advantages

Engine suitable for slopes

The world's only AS 2-stroke engine with EasyStart has position-independent lubrication, ensuring safe operation even on steep slopes.

Up to 30% time saved

No collection basket, no cuttings disposal and fertilise the lawn simultaneously.

Blade shaft bearing arrangement protects the engine

Third crankshaft bearing and friction discs on the mulching blade ensure optimal engine protection.

Traction drive (AS 510)

Comfortable work through variable adjustable speed (variator) in conjunction with large, aggressive tread drive wheels for optimal traction.

Stable double frame

Stable tube frame with replaceable mulching unit.

Produktdetails

product-image

Stable mulching unit

Closed and deep mulching unit for uniform results.

product-image

Cutting height adjustment

Central spring-supported height adjustment.

product-image

Special front wheels

Double ball-bearing supported, smooth-running wheels press down very little grass.

product-image

Operating bar

Stable bar height adjustment without tools.

Warranty

At AS-Motor, we understand that professional users, municipalities, and property owners need more than just high-performance mowing technology – they need confidence in their investment. That’s why we go beyond industry norms to offer a warranty system that sets new standards in the landscaping sector.

Technische Daten

Schnittbreite 51 cm
Maximale Grashöhe "Mulchen" 20 cm
Motorhersteller AS-Motor
Motorbezeichnung AS 165 ES
1-Zyl.Motor, 4T / 2T /
Maximalleistung 4,4/6,0 kW/PS
Nennleistung 2,8/3,8 kW/PS
Nenndrehzahl 2800 U/min.
Drittes Kurbelwellenlager für Motorschutz
100% Mulchfunktion
Schnitthöhe 40 - 90 mm
Zentrale Schnitthöhenverstellung
Schnitthöhenverstellung, Anzahl der Stufen 6
Hinterradantrieb
Anzahl Gänge Vario
Max. Geschwindigkeit 4,3 km/h
Lenkerverstellung, Höhe
Tankinhalt 5 l
Abmaße LxBxH 139x55x100 cm
Gewicht 48 kg
Änderungen und Irrtümer vorbehalten. Aus Angaben und Abbildungen können keine Ansprüche abgeleitet werden.

Zubehör

product-image

Operating hour meter

Documentation of work hours.

product-image

Tilt meter

Convenient display of slope incline.

product-image

Front and side guard

To protect the front wheels.

product-image

AS 2-stroke oil "Titan 2T"

Premium Performance two-stroke oil, for an optimal environmentally-friendly mixing ratio. Recommended for all AS 2-stroke engines. Tested and approved for our recommended mixing ratio of 1:100. Also suitable for 1:50 mixing ratio. Replaces our former TITAN 2T 100S oil, which is no longer available.
